Installing a Marble Backsplash

It's amazing how something so small can make such a big difference in the kitchen! Not only visually, but also being waaaay easier to keep it clean!

This kind of project usually takes a weekend to be completed and depending on the materials you choose, it can be very cheap.  The major thing to figure out, perhaps for me, was what kind of material to use?  There are hundreds of choices: Ceramic, wood, stainless steel, granite, glass mosaic, marble, etc. not to mention colors or sizes!

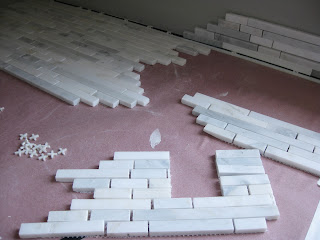

marble tile mosaic with mesh back


So, I decided on marble because in general, it seems a rather traditional-style material, just the way I wanted. The price for this material was not the cheapest; remember it's good to splurge in areas this small that get tons of attention.

The materials I used:

  • Marble Mosaics (enough to cover the area plus 15% extra in case of accidents).

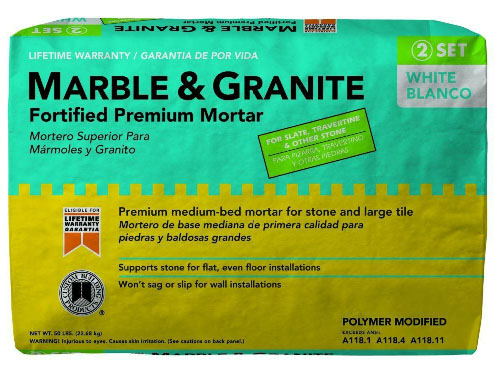

  • Mortar (White, prepared according to specifications).
  • Sealer
  • Trowel
  • Grout
  • Grout float
  • Spacers
  • Sponge
  • Wet tile saw
  • Outlet Extenders
  • Tape measure and level
  • Silicone
  • Rosin Paper

First, the walls were cleaned and sanded.


The countertop was covered, leaving a very small open line all along the wall, where the marble is going to sit.

protecting counters with rosin paper during marble backsplash installation

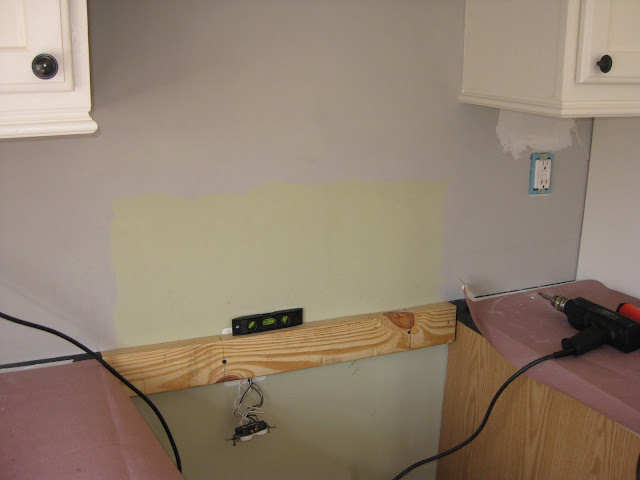

A temporary piece of wood was attached to the wall behind the stove to hold the pieces of marble above this area, make sure is level.

installing a temporarily support during backsplash installation

The outlets were extended so at the end they stayed flush to the marble (Turn off the electrical current while working on this).

extended outlets for backsplash installation

For certain types of tiles it is important to center the design, usually above the stove.  I didn’t have to worry about this.

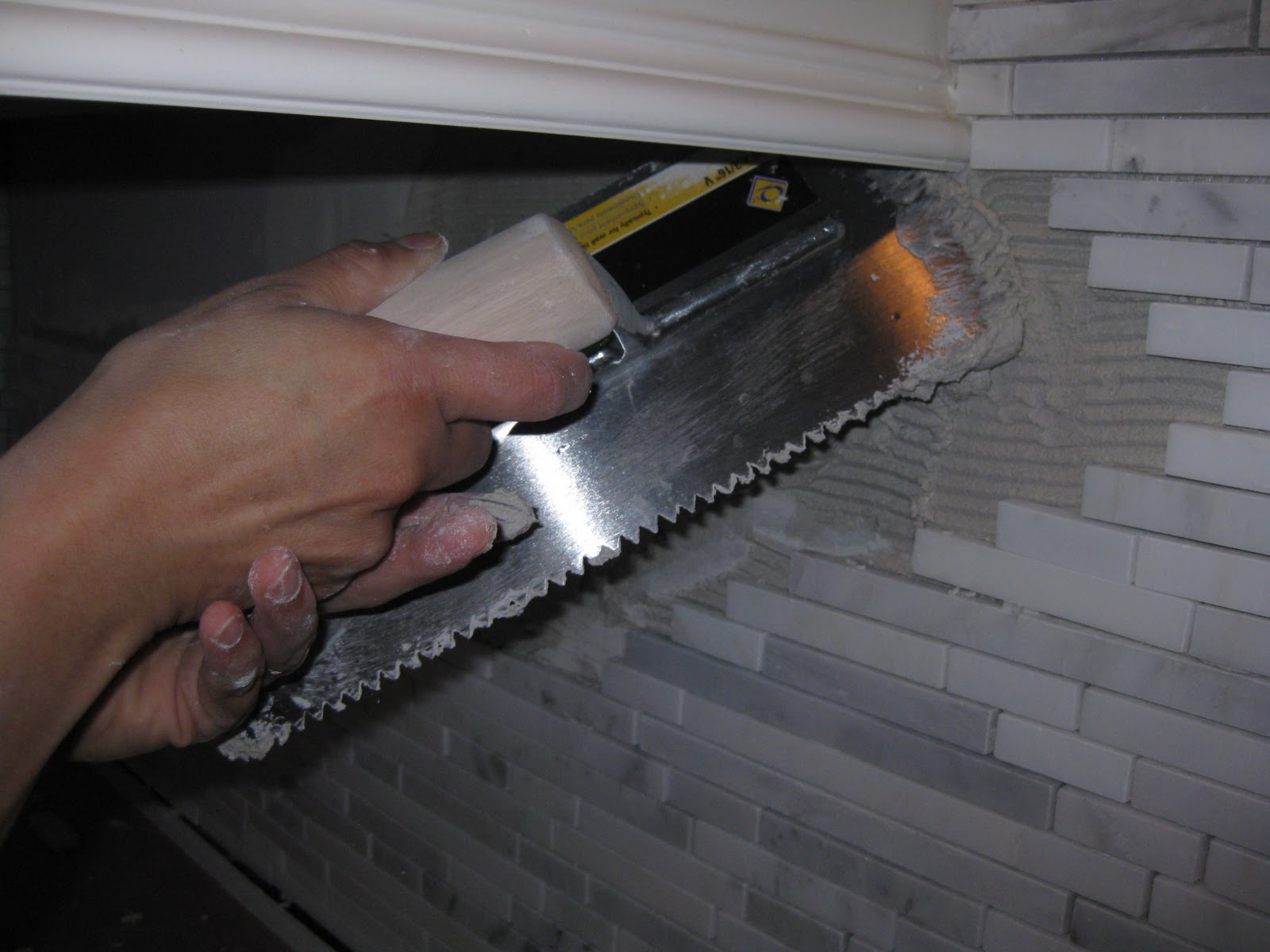

The mortar was applied to the wall with the notched trowel at a 45 degree angle. I began laying the mosaics, pushing gently to set them in place.  Using spacers in between each sheet.

I continued the installation, working around the electrical outlets until everything was covered.

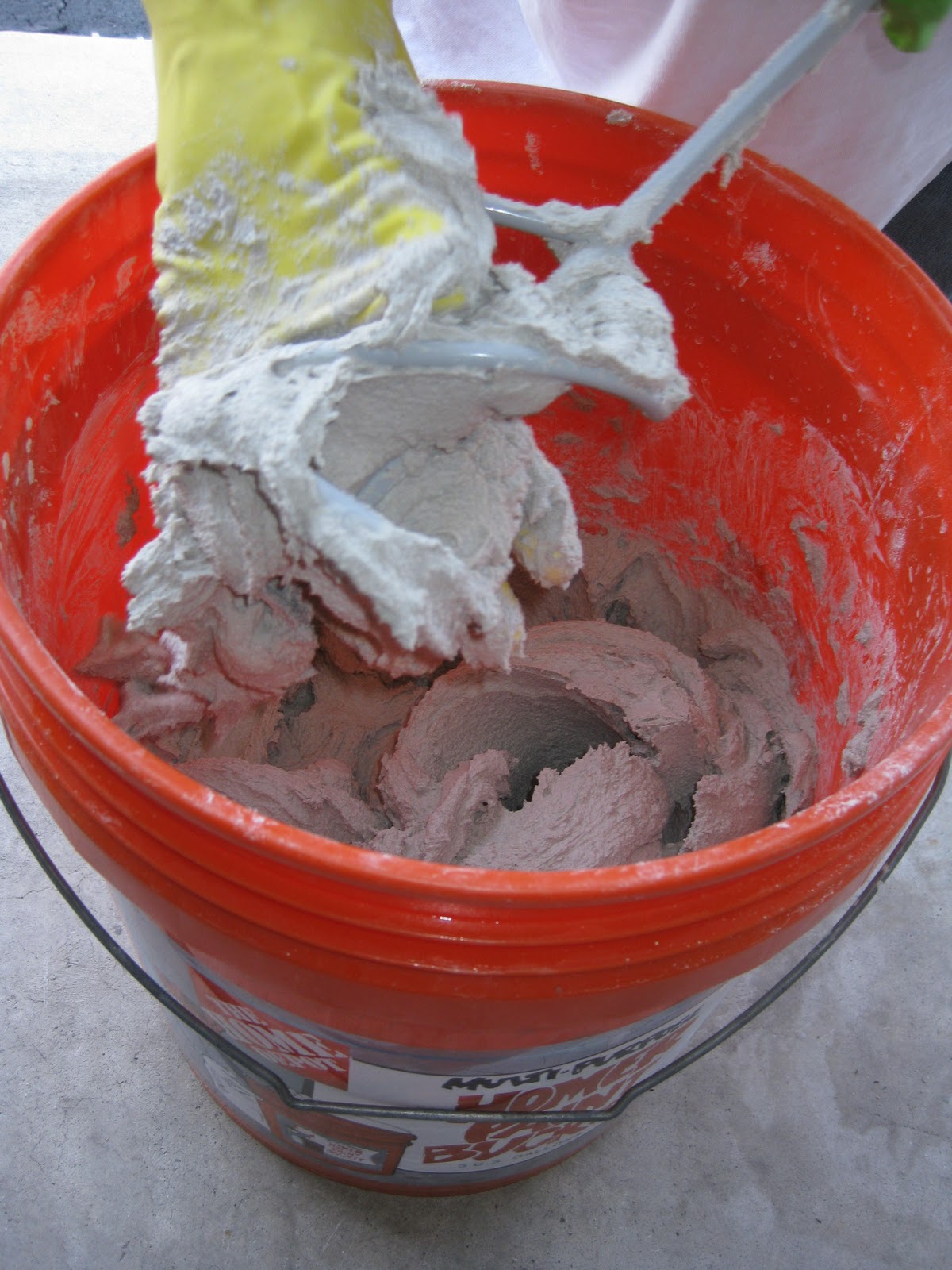

Mixing the mortar

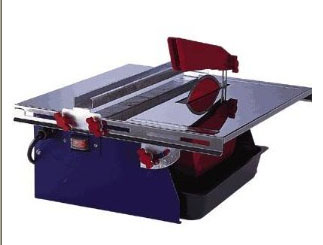

for $70 I bought this wet tile saw
it was one of the cheapest but it worked!
better than renting one!





marble mosaic backsplash installation tips


I waited 24 hours for the mortar to completely dry.

Once the 24 hour period is done, the grout can be applied in a diagonal way with the float.

After finishing applying the grout, wait  few more minutes for the grout to dry a little before starting to clean the marble with a wet sponge, again in a diagonal way.

Once it was dried and thoroughly cleaned, the sealer was applied to protect the marble from stains, mildew and to help keep it clean.
how to protect marble

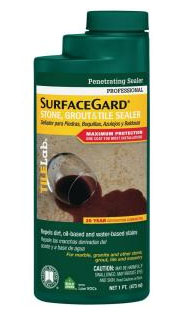

Sealer

Finally, silicone was applied in between the marble and the countertop.
adding a beat of silicone in between counters and backsplash

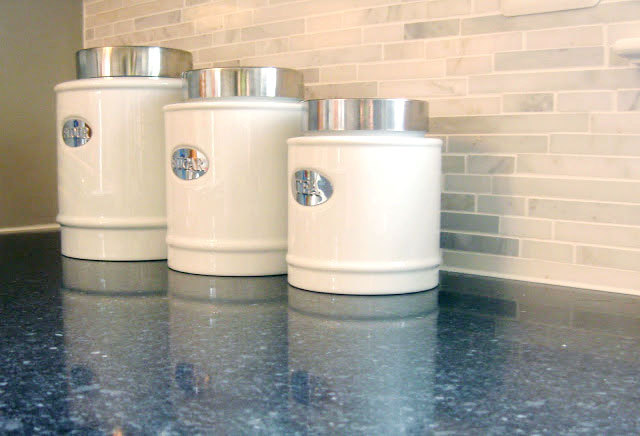

This is how it looks now:
after marble backsplash installation

marble backsplash installation behind stove

how to install a marble backsplash


and this is the before and after:

kitchen makeover on a budget before backsplash installation


kitchen makeover with backsplash


food storage containers on counter

kitchen makeover on a budget with diy marble backsplash


It makes a difference, don't you think so?


Next the total kitchen cost breakdown.


You can also click on the next links for:
Closing the space above the kitchen cabinets
Adding moldings to your kitchen cabinets
How to paint the cabinets.
Build a range hood.
Build a fridge enclosure.
Update the kitchen island
Tips about installing recessed lights
Final kitchen reveal
1 ½ Year Later How the Kitchen is Holding up
Build-in Plate Rack
Pull Out Shelves in Pantry
LG Appliances Review and Complain
